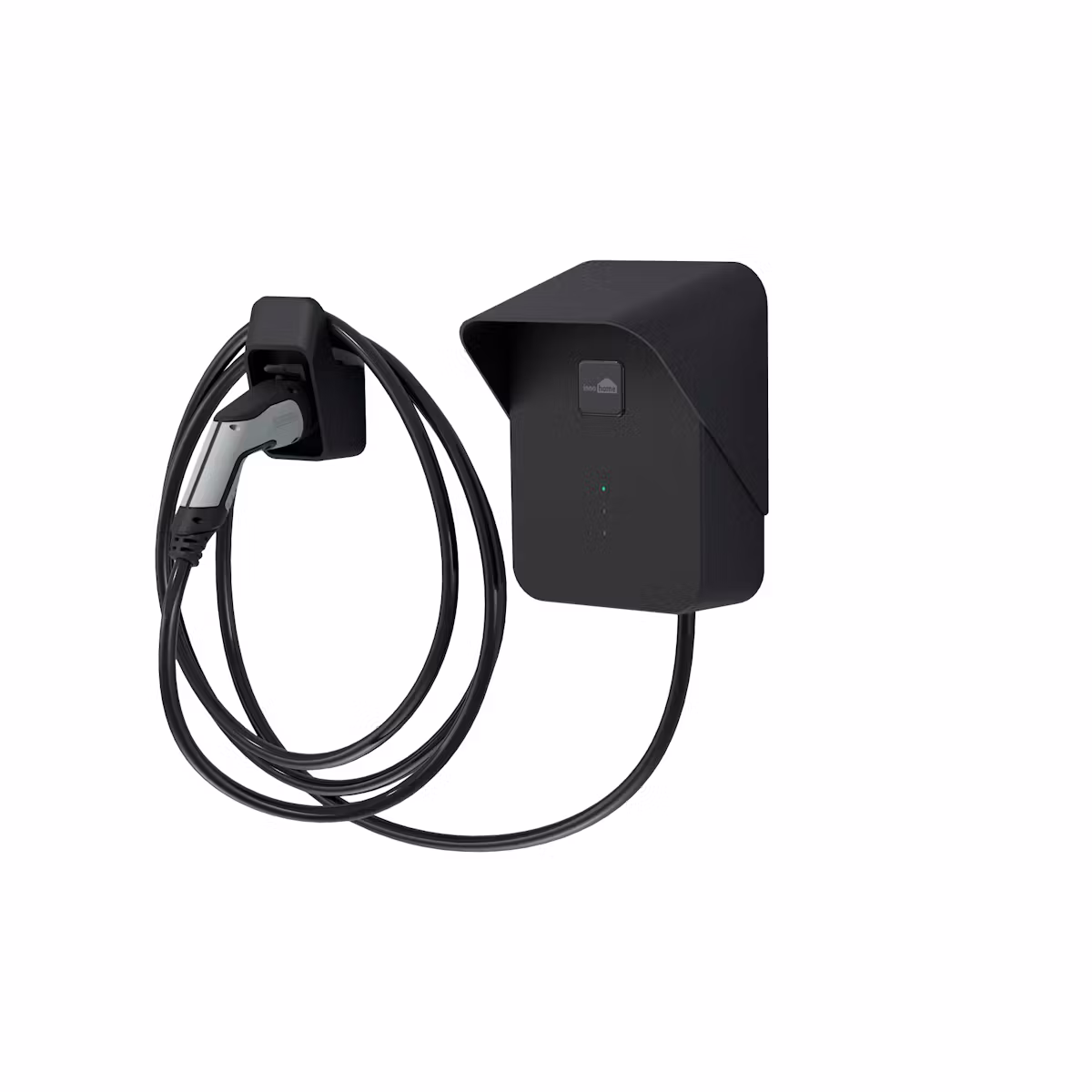

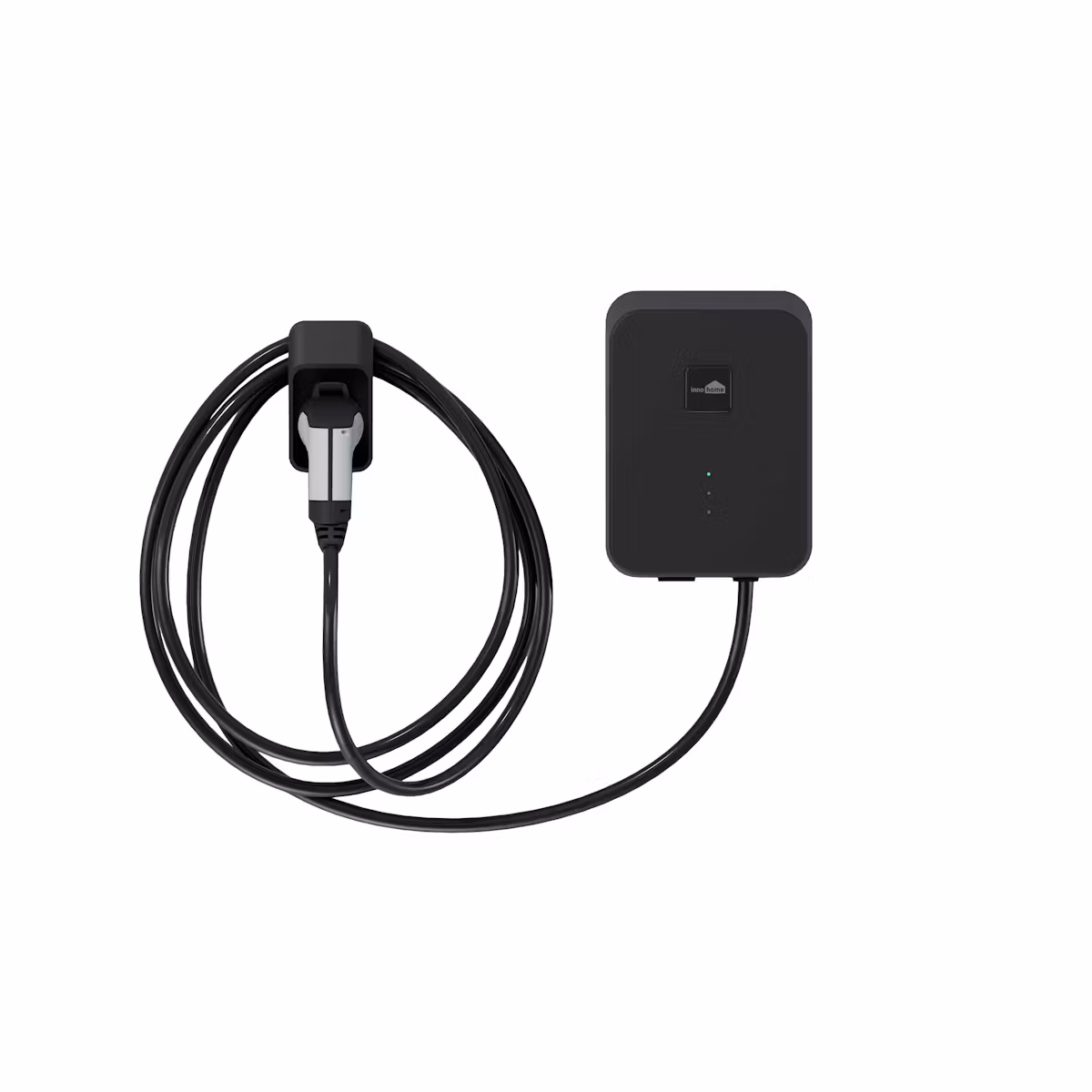

Innohome Charlie-C is a Finnish-designed and manufactured EV charging station equipped with a fixed 4.8-metre Type 2 charging cable. It provides a safe and efficient solution for home charging and small property installations.

The charger supports both single- and three-phase connections with a maximum charging power of 22 kW (32 A). Charging current (10–32 A) is configured during installation using DIP switches according to the electrical capacity of the site.

Charging starts automatically when the cable is connected to the vehicle. No separate app or authentication is required.

The unit features integrated 6 mA DC leakage protection (IEC 62955), meaning that a Type A RCD in the distribution board is sufficient. Load balancing is possible between up to four Innohome Charlie-3 or Charlie-C units.

A cable holder is included for convenient storage.
